Clu Simple EL Panel Front + Back + Driver

This listing is for:

1) One piece of Clu shaped EL Panel to run up one side of the chest

2) A 6cm EL Hoop to go on the shoulder at the top of the curved piece

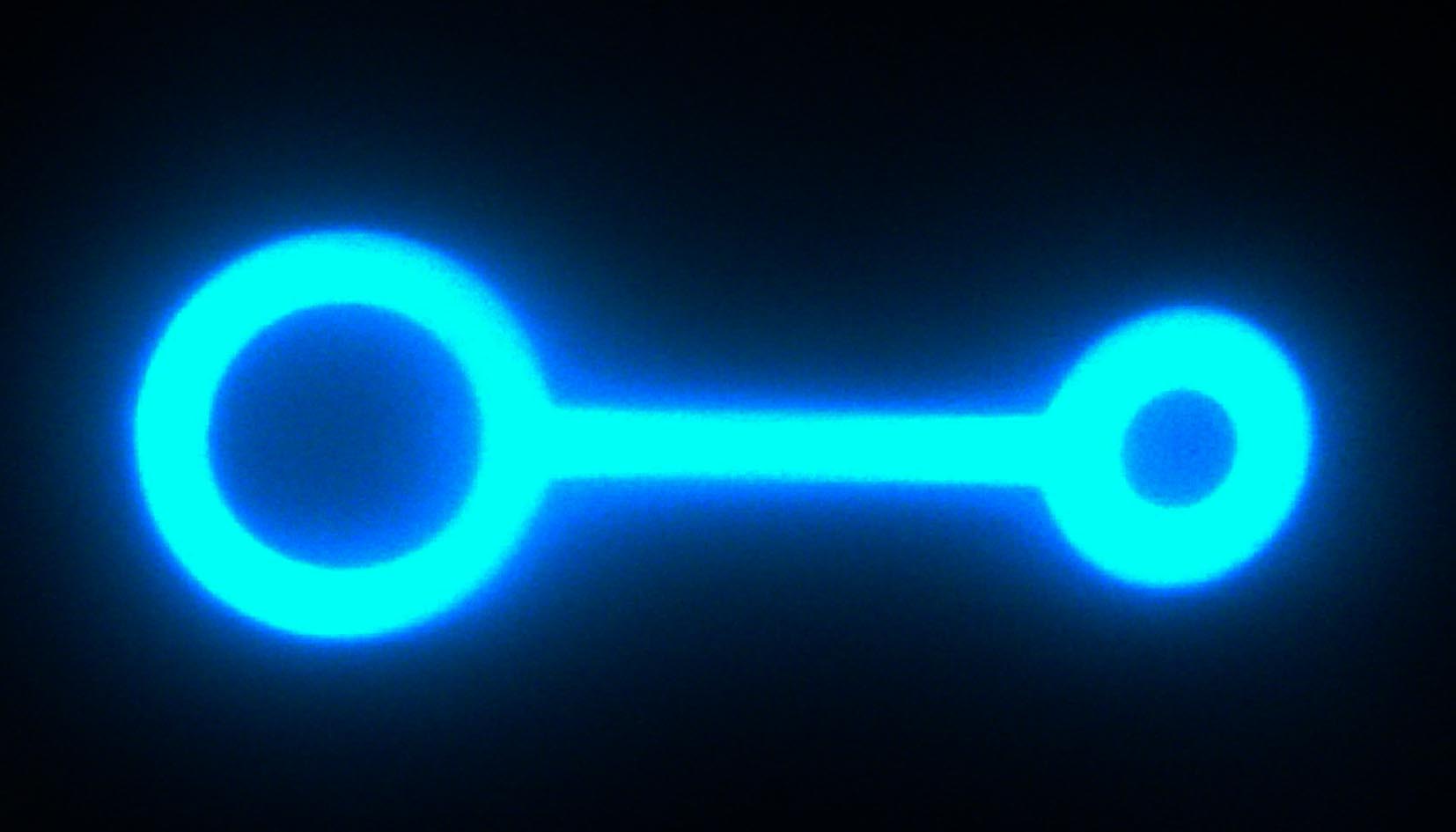

3) 2 x Double hoops for the waist

4) A 14cm EL Tape Tron Identity Disc

5) A Powerful 8 x AA battery EL Driver or rechargeable 3000mAh Li-ion Driver.

6) 1 x 3-way splitter, 2 x mini 2-way splitter, and a 50cm extender wire - these make the whole set a simple 'plug and play'

8) 1 metre of Velcro - with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions

THE POWER PACK*

Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.02cm x 1.9cm and has a 19cm thin power wire coming out of it that leads to the driver.

DRIVER

The driver is 8cm x 5cm x 3.2cm and has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The 3-way Splitter is 40cm long in total, it is 20cm of wire which then splits into 3 separate strands which are all 20cm long

2 of the 3 channels lead to the front of the costume, one to the Right and the other to the Left

Front Right

A mini 2-way splitter plugs into a 6cm EL Hoop, and one of the Double Hoops

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro and can fix it any way you choose

Front Left

Here a mini 2-way splitter is plugged into the Clu shape EL Panel and the other Double Hoop

It is best to plug the 50cm extender into the 3rd channel off the main 3-way splitter which then leads to the...

EL Identity Disc

This Large El Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across

SPLITTERS

This is how we recommend using the splitters:

A 3-way splitter coming straight from the driver - one channel leads to a mini-2way splitter for the Front Right of the costume

- another channel leads to a mini 2-way splitter for the Front Left

- the last channel plugs into a 50cm extender and powers the ID disc at the back of the costume

* all powered by a 8XAA battery pack

Its not complicated or fiddly - I've just given all those details if you want to plan your costume before you buy the set - feel free to message me if you have any questions

The whole kit is ready to use - just plug and play!

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET

We have some crazy glowing masks & glasses that go well with this kit - take a look!

New Tron Ares Replica Light Set

Based on trailers and photos from the set we have created this glowing EL Wire set or the new Tron: Ares movie

we just supply a plug and play glowing el panels and battery pack with velcro to help attach these to your own clothing costume

most of the pieces fit on the front, with the hexagonal ID disc on the back,

red light bolts down the sleeve

and two red light bolts for the legs

(of course you can arrange them in any position you want)

This listing is for:

1) A Hexagonal ID Disc for the back of the costume - 7.5 inch wide (19cm)

2) 2 x hoop and line that run over the shoulders - 7 inches long (18cm)

3) 2 x Shoulder Curves for the top of the chest - 8 inches long(20cm)

4) small square tag t go in the mid collar at the front 1.5inch by 3/4 inch (1.5cm x 3.5cm)

5) large 'n' shape for mid chest - 4.5cm high x 4inch wide (12cm x 10cm)

6) 2 x straight pieces with curved edges - 5 inches long (12.5cm)

7) 6 x red light blot shapes fr the arms and legs - 6 inches long (15cm)

8) 1 x 3 way splitter, 1 x 4-way splitter, 2 x 5-way splitter, 1 x 6-way splitter, and 2 x 50cm extender wire - these make the whole set a simple 'plug and play'

9) 1.5 metre of Velcro - with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions

THE POWER PACK*

Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.02cm x 1.9cm and has a 19cm thin power wire coming out of it that leads to the driver.

DRIVER

The driver is 8cm x 5cm x 3.2cm and has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The main 5-way Splitter is 40cm long in total, it is 20cm of wire which then splits into 5 separate strands which are all 20cm long

the first channel goes to the the back and attaches to a 3 way splitter

this is for the HEX ID Disk and the 2 x Hoops with a Line that run over the shoulders

the second channel is for the chest and attaches to a 5 way splitter

this is for the collar tag, 2 x shoulder curves, the 'n' piece and the 2 x straight pieces

the third channel goes down to the legs and attaches to a 4 way splitter

this is for 4 of the red light bolt shapes

the fourth and fifth channel have 50cm extenders on them that go onto the last red light bolt pieces

one for each arm

* all powered by a 8XAA battery pack

Its not complicated or fiddly - I've just given all those details if you want to plan your costume before you buy the set - feel free to message me if you have any questions

The whole kit is ready to use - just plug and play!

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET

We have some crazy glowing masks & glasses that go well with this kit - take a look!

GLOWING STICKMAN SET = 7.5 metres EL Wire + Driver

1) 6 pieces of 1 metre 3.2mm EL Wire

2) 3 pieces of 50cm 3.2mm EL Wire

3) An EL Driver with either an 8 x AA Power Pack (batteries not supplied) or a rechargeable 3000mAh Li-ion battery (only available in the UK due to airmail postal restrictions)

This driver is powerful enough to glow up to 15 metres of EL Wire

4) 1 x Long 3 Way Splitter, 2 x 3 Way Splitter, 1 x Mini 5 Way Splitter and for the head, a Mini 3 Way Splitter and a 50cm Extender

By 'daisy chaining' the Splitters you can have all 9 metres of EL Wire attached to this one driver/inverter

5) 50 x Clear Hoops to make it easy to attach the EL Wire to the costume and also make it removable so you can put it through the washing machine

The EL Wire can be any combination of these colours:

Light Blue, Lime Green, Pink, Red, Orange, Purple, Yellow, Deep Blue, Turquoise-Green and White

The whole kit is ready to use - just plug and play!

Here is the suggested layout

Dimensions of the products:

If you are making a costume it is important to plan it out properly.

For this glowing man set, the driver/inverter is very powerful and so it comes with a choice of separate power packs.

So here are the dimensions of all the parts plus lengths of wire between them.

THE POWER PACK

Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.02cm x 1.9cm and has a 19cm thin power wire coming out of it that leads to the driver

A 3000mAh rechargeable Li-ion battery which weighs 172g and is 7.3cm x 5.6cm x 2.2cm. This option comes with a 1A intelligent charger. Due to airmail restrictions this is option is only available for UK delivery.

THE DRIVER

The driver is 5.4cm x 3.4cm x 2.9cm and has controls on it - Off, Flashing or On. It has a 55cm wire coming out of it that leads to the...

SPLITTER

The Splitter is 40cm long in total,

it is 20cm of wire which then splits into 3 separate strands which are all 20cm long and lead to the...

EL WIRE

There is then another 20-25cm from the connector until the actual glowing start of EL Wire - then there is 2 X 3metres of gorgeous glowing wire!

1 x 3 metre is for the body

1 x 3 metre is for the legs

ANOTHER SPLITTER!

leads to more...

EL WIRE

20-25cm from the connector until the glowing start of 3 x 50cm EL Wire

These are for the really fun part of designing the expression on the face of your stickman/girl

Its not complicated or fiddly - I've just given all those details if you want to plan your costume before you buy the set

The stickguys and stickgals in these pictures were designed by international party animal Jak Hammer and his amigos!
We have some crazy glowing masks & glasses that go well with this kit - take a look!

GLOWING STICKGIRL SET = 7.5 metres EL Wire + Driver

Turn yourself into a glowing stickgirl!

This set is for a 'plug and play' EL Wire and Driver - but you have to attach it to a costume

*see the diagram below for a suggested setup*

With the set you get:

1) 3 pieces of 1 metre 3.2mm EL Wire

2) 1 piece of 3 metre 3.2mm EL Wire

3) 3 pieces of 50cm 3.2mm EL Wire

4) An EL Driver with either an 8 x AA Power Pack (batteries not supplied) or a rechargeable 3000mAh Li-ion battery (only available in the UK due to airmail postal restrictions)

This driver is powerful enough to glow up to 15 metres of EL Wire

5) 1 x mini 3-way splitter, 1 x standard 3-way splitter, 1 x long 3-way splitter and 1 x 50cm extender

By 'daisy chaining' the splitters you can have all 9 metres of EL Wire attached to this one driver/inverter

6) 50 x Clear Hoops to make it easy to attach the EL Wire to the costume and also make it removable so you can put it through the washing machine

The EL Wire can be any combination of these colours:

Light Blue (Tron Blue), Purple, Deep Blue, Pink, Red, Orange, Yellow, Lime Green, Turquoise-Green and White

The whole kit is ready to use - just plug and play!

Here is the suggested layout - the EL Wire is recommended to run all round the hem of a dress

Dimensions of the products:

If you are making a costume, it is important to plan it out properly.

For this glowing girl set, the driver is very powerful and so it comes with a choice of two different power packs.

So here are the dimensions of all the parts plus lengths of wire between them.

THE POWER PACK

Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.02cm x 1.9cm and has a 21cm thin power wire coming out of it that leads to the driver

THE DRIVER

The driver is 5.4cm x 3.4cm x 2.9cm

It has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The Splitters are 40cm long in total,

it is 20cm of wire which then splits into 3 separate strands which are all 20cm long

The first has 3 channels and this splits off and lead to the...

EL WIRE

3 x 1 metre for the body

1 x 3 metres is for the skirt

3 x 50cm for the head - - This is the really fun part of designing the expression on the face of your stick man/girl

Its not complicated or fiddly - I've just given all those details if you want to plan your costume before you buy the set

The whole kit is ready to use - just plug and play!

Dinner Jacket Suit EL Panels + Driver

This is a classy set if you want to turn a dinner jacket into a startling and unmissable work of art

It has:

1) Two large EL Panels are 37 cm long and 7cm at the wides part of the lapel

2) Zig-Zag Shapes for the shoulders - these are 12cm long in total

3) Long 2-way splitter and 2 x mini 2-way splitters

The Panels glow very brightly in Light Blue colour

4) The driver that powers the two Panels is just 3cm x 4cm x4cm and has an 8 x AA battery box or a rechargeable Li-ion Battery option.

5) 1m Velcro - sticky on one side and sewable on the other to help you attach the EL panel to a costume.

**RECHARGEABLE OPTION ONLY AVAILABLE TO UK - DUE TO EXPORT RESTRICTIONS**

The Driver is capable of powering more EL Tape or EL Wire if you want to add more parts from our online shop

- - - - - - - - -

We have some crazy glowing ties & glasses that go well with this kit - take a look!

A wide selection of other EL Tape, EL Wire, Sequencers, Drivers and helpful EL accessories are available from our online store.

EL Tape TRON SET = 2 x 25cm Tape + EL Hoops + Driver

This amazing kit contains just what you need for a great glowing Tron costume:

1) 2 pieces of 2cm x 25cm EL Tape

2) 2 pieces 6cm EL Hoops

3) 4 Way Black Splitter

4) Powerful portable Driver/Inverter powered by 8xAA batteries (not supplied) or rechargeable Li-ion battery.

5) It also comes with just over 50cm of Velcro - sticky on one side and sewable on the other to help you attach the El Tape and EL Hoops to a costume.

The EL Tape and EL Hoops can be any combination of these colours:

Light Blue (Tron Blue), Deep Blue, Pink, Green, Orange, and White

The whole kit is ready to use - add batteries and plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

So here are the dimensions of all the parts plus lengths of wire between them:

THE POWER PACK

Takes 8 x AA batteries (not supplied) and is 6.5cm x 6cm x 3cm

it has a 65cm thin power wire coming out of it that leads to the...

DRIVER

The driver is 6cm x 4cm x 4cm

It has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The 4 Way Splitter is 40cm long in total,

it is 20cm of wire which then splits into 4 separate strands which are all 20cm long and lead to the...

EL TAPE

The EL Tape has a 20cm wire on it before 25cm of glorious glowing EL Tape

The tape is just 350 microns thick - that is 1/3rd of a millimetre!

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro and fix it any way you choose

EL HOOPS

Two channels of the Splitter lead to these glowing discs of EL Tape that give your costume and authentic Tron look

Its not complicated or fiddly - we've just given all those details if you want to plan your costume before you buy the set - feel free to message us if you have any questions.

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET

We have some crazy glowing masks & glasses that go well with this kit - take a look!

This EL Tape comes with a standard connector so simply plugs into any EL inverter - this makes it easy to change between coloured wire on one inverter.

By using splitters you can also connect different strands to the same Inverter / Driver

EL Tape TRON SET = 2 x 40cm EL Tape + EL Hoops + EL Wire + Driver

This amazing item consists of:

1) 2 pieces of 2cm x 40cm EL Tape,

2) 4 x 6cm EL Hoops,

3) 2 pieces of 1m x 1.5mm EL Wire,

4) 2 x 4-way splitters and a 2-way splitter,

5) and a powerful portable Driver/Inverter with either an 8xAA battery box (batteries not supplied) or a 3000mAh rechargeable Li-ion battery (only available in the UK due to airmail postal restrictions),

6) It also comes with 80cm of Velcro - sticky on one side and sewable on the other to help you attach the tape and hoops to a costume

The EL Wire can be any combination of these colours:

Light Blue (Tron Blue), White and Orange

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver is very powerful and comes with a separate power pack.

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions.

THE POWER PACK

Takes 8 x AA batteries (not supplied) and is 6.5cm x 6cm x 3cm

it has a 65cm thin power wire coming out of it that leads to the...

DRIVER

The driver is 6cm x 4cm x 4cm

It has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The Splitter is 40cm long in total,

it is 20cm of wire which then splits into 3 separate strands which are all 20cm long - 2 of them then lead to...

2 x EL TAPE

The EL Tape has a metre of wire on it before the 2cm X 40cm super-bright glow of the EL Tape

The tape is just 350 microns thick - that is 1/3rd of a millimetre!

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro and can fix it any way you choose

EL HOOPS

Two channels of the splitter lead to these glowing discs of EL Tape onto the shoulders

These 6cm diameter hoops also come with sticky back Velcro discs to attach them to your costume

EL WIRE

This thin but very bright EL Wire gives an amazing effect as it runs from the hoop near the collar, over the shoulder, down the back and round the waist where it meets the other EL Hoop

SPLITTERS

This is how we recommend using the splitters:
The end connector from both 40cm tapes, and the two 'collar' Hoops all connect to a 4-way splitter

The connectors from the Hoops on the waist and the end of the angel hair wire all connect up to a 4-way splitter

The 4-way splitters then connect up to the 2-way splitter and that connects to the driver - simple! 😉

Its not complicated or fiddly - we've just given all those details if you want to plan your costume before you buy the set - feel free to message us if you have any questions.

The whole kit is ready to use - just plug and play!

We have some crazy glowing masks & glasses that go well with this kit - take a look!

- - - - - - - - - - - -

This El Tape comes with a standard connector so simply plugs into any EL driver - this makes it easy to change between coloured wire on one inverter

By using splitters you can also connect different strands to the same driver.

Sam Flynn Tron - FRONT Replica EL Panel Costume + Driver

With this kit comes:

1) Two pieces of replica shaped EL Tape for the front of a Sam Flynn Costume - a Left and a Right

2) A single 1.5cm x 15cm EL Tape for the glowing mid line

4) A Powerful 8 x AA battery driver - capable of powering a further 250squ cm of EL Tape or up to 10 metres of EL Wire (it will power the "Tron Back Set" plus a further 2cm x 25cm of EL Tape)

5) A 3 Way Splitter,

6) 75cm of Velcro - with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

The Set is only available in Light Blue (Tron Blue)

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message me if you have any questions

THE POWER PACK

Takes 8 x AA batteries (not supplied) and is 6.5cm x 6cm x 3cm

it has a 65cm thin power wire coming out of it that leads to the...

INVERTER

The inverter is 6cm x 4cm x 4cm

It has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The Splitter is 40cm long in total,

it is 20cm of wire which then splits into 3 separate strands which are all 20cm long - 2 of them then lead to...

Left and Right Flynn Replica EL Tapes

The EL Tape is 30 cm from top to tail with the stick and hoop that comes in near the shoulder adding another 8cm

The tape is just 350 microns thick - that is 1/3rd of a millimetre!

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro and fix it any way you choose

The Mid-Line

Sam Flynn has a small line of light that runs down the middle of his chest. This is lit by the 1.5cm x 15cm EL Tape provided. This tape can be easily cut to shape if you prefer it smaller

SPLITTERS

We recommend using the splitter as follows:

The 3-way splitter comes straight from the Inverter, 2 of the channels go to the left and right side of Flynn Torso with the third going to the Mid-Line

Its not complicated or fiddly - I've just given all those details if you want to plan your costume before you buy the set - feel free to message me if you have any questions

The whole kit is ready to use - just plug and play!

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET

We have some crazy glowing masks & glasses that go well with this kit - take a look!

Sam Flynn Tron - BACK Replica EL Panel Costume + Driver

With this set you get the following items:

1) Two pieces of EL Tape for the back of a Tron Costume - It is a 2cm x 40cm EL Tape curved to go round the ID Disc and over the shoulder

2) 1 x 14cm EL Tape Tron Identity Disc

3) A Powerful 8 x AA battery inverter - capable of powering a further 1 metre of EL Tape or up to 10 metres of EL Wire

4) A 3 Way Splitter

6) 1 metre of Velcro - with sticky hoop and sewable loop to make it easy to attach the set to a costume that can be removed for washing.

The Set is only available in Light Blue (Tron Blue)

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the Driver/Inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

THE POWER PACK

Takes 8 x AA batteries (not supplied) and its dimensions are 12.7cm x 7.2cm x 1.9cm

It has a 65cm thin power wire coming out of it that leads to the...

DRIVER / INVERTER

The inverter is 6cm x 4cm x 4cm and can be switched between: Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The Splitter is 40cm long in totaland has a 20cm of wire which then splits into 3 separate strands which are all 20cm long - 2 of them then lead to the...

2cm x 40cm Curved EL TAPE

The EL Tape is curved so is 37 cm from top to tail - it has been designed to go on the back round the ID disc and curve over the shoulder

The EL Tape is just 350 microns thick - that is 1/3rd of a millimetre!

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove: of course, you don't need to use the Velcro and can fix it any way you choose.

The other channel from the Splitter leads to the...

EL IDENTITY DISC

This Large El Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across

It's not complicated or fiddly but please message us if you have any questions.

The whole kit is ready to use - just plug and play!

We have some crazy glowing masks & glasses that go well with this kit - take a look!

Sam Flynn Tron - TORSO Replica EL Panel Costume Front +Back + Driver

With this set you get:

1) Two pieces of replica shaped EL Tape for the front of a Sam Flynn Costume - a Left and a Right

2) A single 1.5cm x 15cm EL Tape for the glowing mid line

3) A 14cm EL Identity Disc for the back of the costume

4) Two pieces of 2cm x 40cm Curved EL Tape for the back of a Tron Costume - It is curved to go round the ID Disc and over the shoulder

5) Two Pieces of 1.5cm x 15cm EL Tape for the top of the arms of the Tron costume

6) A Powerful 8 x AA battery inverter

7) 2 x 3-way splitters, 1 x SML and a 2-way splitter and a 50cm long extender to make it a simple 'plug and play' but also with plenty of room for the wire to stretch around the costume

8) 1.5 metres of Velcro - with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

The Set is only available in Light Blue (Tron Blue)

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions

THE POWER PACK

Takes 8 x AA batteries (not supplied) and is 6.5cm x 6cm x 3cm

it has a 65cm thin power wire coming out of it that leads to the...

INVERTER

The inverter is 6cm x 4cm x 4cm

It has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The Splitter is 40cm long in total,

it is 20cm of wire which then splits into 3 separate strands which are all 20cm long - 2 of them then lead to...

Left and Right Flynn Replica EL Tapes

The EL Tape is 30 cm from top to tail with the stick and hoop that comes in near the shoulder adding another 8cm

The tape is just 350 microns thick - that is 1/3rd of a millimetre!

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro and fix it any way you choose

Mid-Line

Sam Flynn has a small line of light that runs down the middle of his chest. This is lit by the 1cm x 15cm EL Tape provided. This tape can be easily cut to shape if you prefer it smaller

EL Identity Disc

This Large El Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across

2cm x 40cm Curved Outline

The EL Tape is curved so is 37 cm from top to tail - it has been designed to go on the back round the ID disc and curve over the shoulder

EL Tape for the Arms

2pcs of 1.5cm x 15cm EL Tape, one for each arm

SPLITTERS

This is how we recommend using the splitters

A 2-way splitter coming straight from the Inverter - this divides the front and the back:

The First channel goes to a 3-way splitter

to power the front of the costume - The left and right Flynn Tape plus the mid-line

The Second channel

can be fitted with the extender wire and this will allow it to reach to the back of the costume

A 3-way splitter attaches to this:

1 channel does the 1cm x 15cm left arm

2nd channel does the left 2cm x 40cm curved outline

the 3rd channel has another 3 way splitter (SML) on it

1st channel attaches to the ID Disc

2nd Channel has the Right 2cm x 40cm curved outline

3rd channel does the 1cm x 15cm right arm

Depending on where you have the inverter, you may or may not need the extender wire

Its not complicated or fiddly - I've just given all those details if you want to plan your costume before you buy the set - feel free to message me if you have any questions

The whole kit is ready to use - just plug and play!

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET

We have some crazy glowing masks & glasses that go well with this kit - take a look!

LEG Pieces for Tron Replica Set

This Tron Leg Set contains:

1) Two pieces of replica shaped EL Tape for the boots of a Tron Costume - Sam Flynn, Rinzler or Quorra

2) Two pieces of shaped and angled EL Tape to go round the knees

3) Two pieces of sacral shaped EL Panel to go at the lower back

4) Two pieces of 2cm x 25cm EL Tape

5) A Powerful Driver with 8xAA Battery Box

6) A 2 Way Splitter, A 3 Way Splitter and 2 x 'Short, Medium and Long' Splitters

6) 1.5 metre of Velcro - with sticky hoop and sewable loop to make it easy to attach to a costume and have it removable for washing.

The Set is available in the following colours:

Orange or Light Blue

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly. Feel free to email us with any questions you may have.

For this set, the Driver / Inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

THE POWER PACK

Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.2cm x 1.9cm

it has a 21cm thin power wire coming out of it that leads to the...

DRIVER

The Driver is 6cm x 4cm x 4cm

It has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The Splitter is 40cm long in total,

it is 20cm of wire which then splits into separate strands which are all 20cm long.

A 3 Way Splitter attaches to the Driver

One of these channels has a 2 Way Splitter attached that runs round the back to clip into the pair of EL Sacral pieces

The other two channels have a special '3 Way Small Midi and Long' Splitter attached to them that run down each leg

These SML splitters have:

one Short channel that plugs to the 25cm Tape.

Then the Middle channel plugs into the Knee Joint section

The Long channel goes down to the Shin to plug into the Double Hoop

The three pieces of EL Tape that run down the leg are:

1) SHIN

This 15cm Double Hoop is designed to run from your shin to the ankle to give a great finishing touch to any Tron costume (these are also available for other parts of your Tron costume in our store

2) KNEE JOINT

Running up from the boot piece, this piece of EL Tape takes an angle round the knee, exactly as in the original costumes

This has been made to the largest size and will not fit everyone so it has been designed so you can just snip it down to the right size for you

That's right, it really is as easy as just cutting the unwanted part off either or both ends (sealing the cut with sellotape, glue or clear nail varnish is highly recommended)

3) 2cm x 25cm EL Tape

Another piece that can be cut to size is this straight piece of EL Tape that runs from the Knee Joint up to join the top half of the costume

Coming off the two-way splitter at the back of the costume:

4) EL SACRAL

This pair of pieces sits at the base of the spine and looks pretty awesome

The EL Tape is just 350 microns thick - that is 1/3rd of a millimetre!

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro, fix it any way you choose.

Its not complicated or fiddly.

The whole kit is ready to use - just plug and play!

We have some crazy glowing masks & glasses that go well with this kit - take a look!

A wide selection of other EL Tape, EL Wire, Sequencers, Drivers and helpful EL accessories are available from this store

Sam Flynn Tron - FULL Replica EL Panel Costume - Torso, Legs and Driver

Finally, we can get this full Tron Set running from a single portable Driver.

This Tron Full EL Panel Set in Light Blue (Tron Blue) is a combination of the Flynn Replica Torso Set and the Tron Leg Set

There are details of how we suggest the layout for replica below:

It goes on a bit, but that is to help you get it exactly right. It is all actually very easy to use and just clips together.

The guy on the right of the picture below has used the set to make a copy of the Sam Flynn costume (please note we do not supply the disc he is holding)

The girl on the left has created her own Tron inspired design with the same set. The design is completely flexible if you want to use it that way.

We suggest finding a comfortable garment to attach it to.

All these Tron Sets comes with sewable Velcro to go on the costume and sticky Velcro that goes on the back of the panel making it very easy to attach to any clothing

This is the full list of what is enclosed in this set and our suggested layout:

Torso Pieces

1) Two pieces of replica shaped EL Tape for the front of a Sam Flynn Costume - a Left and a Right

2) A single 1.5cm x 15cm EL Tape for the glowing mid line

3) A 14cm EL Identity Disc for the back of the costume

4) Two pieces of 2cm x 40cm Curved EL Tape for the back of a Tron Costume - It is curved to go round the ID Disc and over the shoulder

5) Two pieces of 1.5cm x 15cm EL Tape for the top of the arms of the Tron costume

6) 3 x 3 Way Splitters, a 2 x 2 Way Splitters and a 50cm long Extender to make it a simple 'plug and play' but also with plenty of room for the wire to stretch around the costume

Leg Pieces

1) Two pieces of replica shaped EL Tape for the boots of a Tron Costume - Sam Flynn, Rinzler or Quorra

2) Two pieces of shaped and angled EL Tape to go round the knees

3) Two pieces of sacral shaped EL Panel to go at the lower back

4) Two pieces of 2cm x 25cm EL Tape

5) A 2 Way Splitter, A 3 Way Splitter and 2 x 'Short, Medium and Long' Splitters

You will also get

1) 2 metres of Velcro - with sticky hoop and sewable loop to make it easy to attach the set to a costume and be removable so it can be washed.

2) A single Powerful 8x AAbattery (batteries not supplied) inverter to drive BOTH SETS

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

The Torso Section

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions.

THE POWER PACK:

Takes 8xAA batteries (not supplied) and is 12.7cm x 7.2cm x 1.9cm and has a 65cm thin power wire coming out of it that leads to the...

INVERTER / DRIVER:

The inverter is 6cm x 4cm x 4cm

It has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER:

The Splitter is 40cm long in total and it is 20cm of wire which then splits into 3 separate strands which are all 20cm long - 2 of them then lead to...

Left and Right Flynn Replica EL Tapes:

The EL Tape is 30cm from top to tail with the stick and hoop that comes in near the shoulder adding another 8cm

The tape is just 350 microns thick - 1/3rd of a millimetre.

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as the glue is VERY sticky

You will need to sew the other part of the Velcro onto the costume making it very convenient to attach and remove

You don't need to use the Velcro and can fix it any way you choose.

Mid-Line

Sam Flynn has a small line of light that runs down the middle of his chest. This is lit by the 1.5cm X15cm EL Tape provided. This tape can be easily cut to shape if you prefer it smaller

EL Identity Disc

This Large El Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across

2cm x 40cm Curved Outline

The EL Tape is curved so is 37 cm from top to tail - it has been designed to go on the back round the ID disc and curve over the shoulder

EL Tape for the Arms: 2pcs of 1.5cm x 15cm EL Tape, one for each arm

SPLITTERS:

This is how we recommend using the Splitters

A 2 Way Splitter coming straight from the Inverter - this divides the front and the back:

The First channel goes to a 3 Way Splitter to power the front of the costume - The left and right Flynn Tape plus the mid-line

The Second channel can be fitted with the Extender wire and this will allow it to reach to the back of the costume

A 3 Way Splitter attaches to this:

1 channel does the 1.5cm x 15cm left arm

2nd channel does the left 2cm x 40cm curved outline

The 3rd channel has another 3 Way Splitter on it

1st channel attaches to the ID Disc

2nd channel has the Right 2cm x 40cm curved outline

3rd channel does the 1.5cm x 15cm right arm

Depending on where you have the inverter, you may or may not need the extender wire

The Leg Section

1) Two pieces of replica shaped EL Tape for the boots of a Tron Costume - Sam Flynn, Rinzler or Quorra

2) Two pieces of shaped and angled EL Tape to go round the knees

3) Two pieces of sacral shaped EL Panel to go at the lower back

4) Two pieces of 2cm x 25cm EL Tape

5) A 2 Way Splitter, A 3 Way Splitter and 2 x 'Short, Medium and Long' Splitters

The whole kit is ready to use - just plug and play!

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

DRIVER

The Torso and Leg set run off the same Driver

SPLITTER

The Splitter is 40cm long in total,

it is 20cm of wire which then splits into separate strands which are all 20cm long.

A 3 Way Splitter attaches to the Driver

One of these channels has a 2 Way Splitter attached that runs round the back to clip into the pair of EL Sacral pieces

The other two channels have a special '3 way Small Midi and Long' splitter attached to them that run down each leg

These SML splitters have:

one Short channel that plugs to the 25cm Tape.

Then the Middle channel plugs into the Knee Joint section

The Long channel goes down to the shin to plug into the Double Hoop

The three pieces of EL Tape that run down the leg are:

1) SHIN

This 15cm Double Hoop is designed to run from your shin to the ankle to give a great finishing touch to any Tron costume (these are also available for other parts of your Tron costume in our store

2) KNEE JOINT

Running up from the boot piece, this piece of EL Tape takes an angle round the knee, exactly as in the original costumes

This has been made to the largest size and will not fit everyone so it has been designed so you can just snip it down to the right size for you

That's right, it really is as easy as just cutting the unwanted part off either or both ends (sealing the cut with sellotape, glue or clear nail varnish is highly recommended)

3) 2cm x 25cm EL Tape

Another piece that can be cut to size is this straight piece of EL Tape that runs from the Knee Joint up to join the top half of the costume

Coming off the two-way splitter at the back of the costume:

4) EL SACRAL

This pair of pieces sits at the base of the spine and looks pretty awesome

The EL Tape is just 350 microns thick - that is 1/3rd of a millimetre!

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro, fix it any way you choose

Its not complicated or fiddly - I've just given all those details if you want to plan your costume before you buy the set - feel free to message us if you have any questions.

The whole kit is ready to use - just plug and play!

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET

We have some crazy glowing masks & glasses that go well with this kit - take a look!

Quorra Replica EL Panel Front + Back + Driver

This listing is for:

1) Two pieces of single EL Hoops to go near each shoulder

2) 1.5cm x 25cm EL Tape to go down the front at one side

3) 2cm x 40cm EL Tape to go down the front at the other side

4) 2cm x 6cm EL Curve to 'tail off' the 40cm EL Tape

5) Two pieces EL Double Hoops for the waist

6) 14cm EL Tape Tron Identity Disc

7) A Powerful 8xAA Battery EL Driver (or rechargeable 3000mAh Li-ion Driver)

8) 5 Way Splitter, 3 Way Splitter, Mini 2 Way Splitter, Mini 3 Way Splitter - these make the whole set a simple 'plug and play'

9) 1 metre of Velcro - with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions

THE POWER PACK*

Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.02cm x 1.9cm and has a 19cm thin power wire coming out of it that leads to the Driver

it has a 65cm thin power wire coming out of it that leads to the...

DRIVER

The Driver is 6cm x 4cm x 4cm

It has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The 5 Way Splitter is 40cm long in total,

it is 20cm of wire which then splits into 5 separate strands which are all 20cm long

1 of them then lead to...

Front Right

A Mini 2 Way splitter plugs into a 6cm EL Hoop and a thin 1.5cm x 25cm EL Tape

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro and can fix it any way you choose to.

Front Left

Here a Mini 3 Way splitter is plugged into a 6cm EL Hoop, a long 2cm x 40cm EL Tape and a 6cm EL Curve to tail off the end of the EL Tape

Two more of the channels off the main 5 Way Splitter go to...

Double Hoops

These two Double Hoop EL Shapes curve round either side of the waist

Another channel, off the main 5 Way Splitter goes to the back of the costume to the...

EL Identity Disc

This Large EL Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across

SPLITTERS

This is how we recommend using the Splitters:

A 5 Way Splitter coming straight from the Driver - for the left side, right side, 2 x Double Hoops and ID disc

* Instead of 8 x AA battery pack this whole unit can be powered by a small rechargeable Li-ion battery

The 3000mAh battery is as powerful as 8 x AA batteries but weighs only 172g and is 7.3cm x 5.6cm x 2.2cm

It comes with an Intelligent Charger with UK plug

The whole kit is ready to use - just plug and play!

We have some crazy glowing masks & glasses that go well with this kit - have a look!

Clu Replica EL Panel Front + Back + Driver

This listing is for:

1) One piece of Clu shaped EL Panel to run up one side of the chest

2) One 40cm angled piece of EL Tape to run up the other side of the chest

3) A 6cm EL Hoop to go on the shoulder at the top of the curved piece

4) 2 x Double hoops for the waist

5) A 14cm EL Tape Tron Identity Disc

6) A Powerful 8 x AA battery EL Driver or rechargeable 3000mAh Li-ion Driver.

7) 1 x 3-way splitter, a mini 2-way splitter, a mini 3-way splitter and a 50cm extender wire - these make the whole set a simple 'plug and play'

8) 1 metre of Velcro - with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions

THE POWER PACK*

Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.02cm x 1.9cm and has a 19cm thin power wire coming out of it that leads to the driver.

DRIVER

The driver is 8cm x 5cm x 3.2cm and has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The 3-way Splitter is 40cm long in total, it is 20cm of wire which then splits into 3 separate strands which are all 20cm long

2 of the 3 channels lead to the front of the costume, one to the Right and the other to the Left

Front Right

A mini 3-way splitter plugs into a 6cm EL Hoop, the 40cm Curved EL Panel and one of the Double Hoops

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro and can fix it any way you choose

Front Left

Here a mini 2-way splitter is plugged into the Clu shape EL Panel and the other Double Hoop

It is best to plug the 50cm extender into the 3rd channel off the main 3-way splitter which then leads to the...

EL Identity Disc

This Large El Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across

SPLITTERS

This is how we recommend using the splitters:

A 3-way splitter coming straight from the driver - one channel leads to a mini-3way splitter for the Front Right of the costume

- another channel leads to a mini 2-way splitter for the Front Left

- the last channel plugs into a 50cm extender and powers the ID disc at the back of the costume

* Instead of 8XAA battery pack this whole unit can be powered by a small rechargeable Li-ion battery

The 3000mAh battery is as powerful as 8xAA batteries but weighs only 172g and is 7.3cm x 5.6cm x 2.2cm

It comes with an Intelligent Charger with UK plug

Its not complicated or fiddly - I've just given all those details if you want to plan your costume before you buy the set - feel free to message me if you have any questions

The whole kit is ready to use - just plug and play!

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET

We have some crazy glowing masks & glasses that go well with this kit - take a look!

Siren Gem Replica EL Panel Set, Torso + Legs + Driver

This listing is for:

1) Four pieces of Angular EL Tape for the body of a Gem Costume

2) A single 1.5cm x 15cm EL Tape that can be easily snipped to length - for the glowing mid line

3) Two pieces of 2cm x 40cm Curved EL Tape for the back of a Tron Costume - It is curved to go round the ID Disc and over the shoulder

4) 1 x 14cm Tron Identity Disc, made of EL tape.

5) A Powerful 8 x AA battery EL Driver or rechargeable 3000mAh Li-ion Driver.

6) 1 x 4-way splitters, a 3-way splitter, a mini 3-way splitter and 2 x 50cm extender for the leg parts - these make the whole set a simple 'plug and play'

7) 1.5metres of Velcro - with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

This set is only available in Light Blue (Tron Blue)

The whole kit is ready to use - just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions

THE POWER PACK*

Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.02cm x 1.9cm and has a 19cm thin power wire coming out of it that leads to the driver

DRIVER

The driver is 8cm x 5cm x 3.2cm

It has the controls on it - Off, Flashing or On

It has a 55cm wire coming out of it that leads to the...

SPLITTER

The 4- way Splitter is 40cm long in total,

it is 20cm of wire which then splits into 4 separate strands which are all 20cm long - 1 of them then lead to...

Gem Front

This part has its own mini-3way splitter attached to two of the 2cm x 40cm Curved EL Tape and the 1.5cm x 15cm mid line Piece

Sticky back Velcro is supplied that is the exact width of the EL Tape - be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don't need to use the Velcro and can fix it any way you choose

Another channel, off the main 4-way splitter, goes to the back of the costume

Plug the other 3-way splitter into the 4-way splitter and those three channels go off too...

EL Identity Disc

This Large El Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across

and...

2cm x 40cm Curved Outline

The EL Tape is curved so is 37 cm from top to tail - it has been designed to go on the back round the ID disc and curve over the shoulder

The other two channels off the main 4-way splitter are for the leg pieces

a 50cm extender wire plugs into both of these to take the power too...

Gem Leg Pieces

Each leg has a 40 cm angled EL Tape to run down to the knee

SPLITTERS

This is how we recommend using the splitters

A 4-way splitter coming straight from the driver - for the front, the back and each leg

Depending on where you have the inverter, you may or may not need both extender wires

*Instead of 8 x AA battery pack this whole unit can be powered by a small rechargeable Li-ion battery

The 3000mAh battery is as powerful as 8 x AA batteries but weighs only 172g and is 7.3cm x 5.6cm x 2.2cm and comes with an Intelligent Charger

Its not complicated or fiddly - I've just given all those details if you want to plan your costume before you buy the set - feel free to message me if you have any questions

The whole kit is ready to use - just plug and play!

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET

We have some crazy glowing masks & glasses that go well with this kit - take a look!
