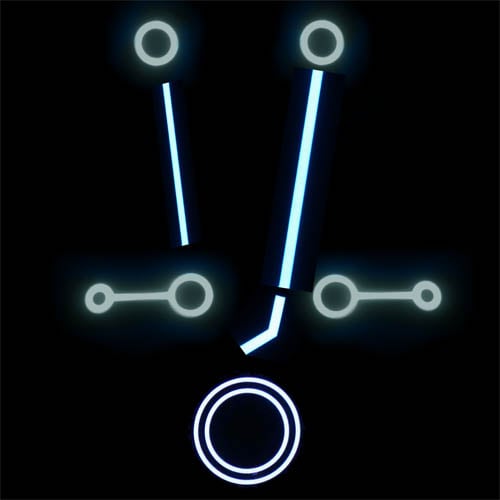

Quorra Replica EL Panel Front + Back + Driver


This Quorra replica set is plug and play and contains:



This listing is for:

1) Two pieces of EL Tape Hoop shape to go near each shoulder

2) A thin 1.5cm x 25cm EL Tape to go down the front at one side

3) A 2cm x 40cm EL Tape to go down the front at the other side

4) A 2cm x 6cm EL Curve to ‘tail off’ the 40cm EL Tape

5) 2 x Double hoops for the waist

6) A 14cm EL Tape Tron Identity Disc

7) A Powerful 8 x AA battery EL Driver (or rechargeable 3000mAh Li-ion Driver)

8) 1 x 5-way splitter, a 3-way splitter, a mini 2-way splitter, a mini 3-way splitter – these make the whole set a simple ‘plug and play’

9) 1metre of Velcro – with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

The whole kit is ready to use – just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions


Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.02cm x 1.9cm and has a 19cm thin power wire coming out of it that leads to the driver

it has a 65cm thin power wire coming out of it that leads to the…


The driver is 6cm x 4cm x 4cm

It has the controls on it – Off, Flashing or On

It has a 55cm wire coming out of it that leads to the…


The 5-way Splitter is 40cm long in total,

it is 20cm of wire which then splits into 5 separate strands which are all 20cm long

1 of them then lead to…

Front Right

A mini 2-way splitter plugs into a 6cm EL Hoop and a thin 1.5cm x 25cm EL Tape

Sticky back Velcro is supplied that is the exact width of the EL Tape – be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don’t need to use the Velcro and fix it any way you choose

Front Left

Here a mini 3-way splitter is plugged into a 6cm EL Hoop, a long 2cm x 40cm EL Tape and a 6cm EL Curve to tail off the end of the EL Tape

Two more of the channels off the main 50way splitter go to…

Double Hoops

These two Double Hoop EL Shapes curve round either side of the waist

Another channel, off the main 5-way splitter goes to the back of the costume to the…

EL Identity Disc

This Large El Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across


This is how we recommend using the splitters

A 5-way splitter coming straight from the driver – for the left side, right side, 2 x Double Hoops and ID disc

* Instead of 8 x AA battery pack this whole unit can be powered by a small rechargeable Li-ion battery

The 3000mAh battery is as powerful as 8 x AA batteries but weighs only 172g and is 7.3cm x 5.6cm x 2.2cm

It comes with an Intelligent Charger with UK plug

Its not complicated or fiddly – I’ve just given all those details if you want to plan your costume before you buy the set – feel free to message me if you have any questions

The whole kit is ready to use – just plug and play!
