Name: Clu Replica EL Panel Front + Back + Driver
SKU: clu_
Price: 49.99 GBP
Availability: OutOfStock

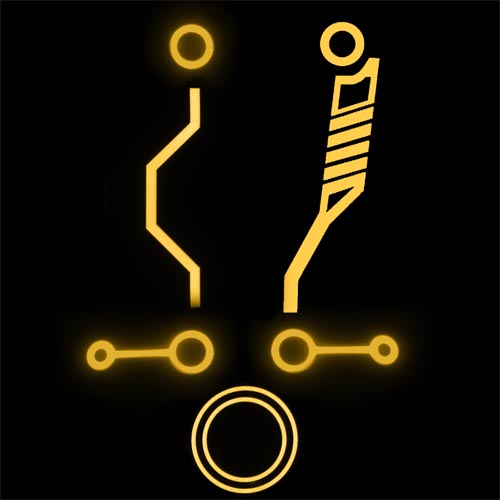

Clu Replica EL Panel Front + Back + Driver

£49.99 – £74.99

This Clu replica torso set is plug and play and contains:

1 x Clu shaped EL Panel to run up one side of the chest.
1 x 40cm curved piece of EL Tape to run up the other side of the chest.
1 x 2cm x 40cm EL Tape to go down the front on the other side of the torso.
1 x 6cm EL Hoop to go on the shoulder at the top of the curved piece.
2 x Double hoops for the waist.
1 x 14cm Tron Identity Disc, made of EL tape.
1 x 3-way splitter, 1 x mini 2-way splitter, 1 x mini 3-way splitter and 1 x 50cm extender wire.
A powerful portable driver with an 8 x AA battery pack (batteries not supplied) or a rechargeable Li-ion battery.
1m of Velcro – sticky on one side and sewable on the other to attach and remove the EL tape from your costume.

Show less

Description

This listing is for:

1) One piece of Clu shaped EL Panel to run up one side of the chest

2) One 40cm angled piece of EL Tape to run up the other side of the chest

3) A 6cm EL Hoop to go on the shoulder at the top of the curved piece

4) 2 x Double hoops for the waist

5) A 14cm EL Tape Tron Identity Disc

6) A Powerful 8 x AA battery EL Driver or rechargeable 3000mAh Li-ion Driver.

7) 1 x 3-way splitter, a mini 2-way splitter, a mini 3-way splitter and a 50cm extender wire – these make the whole set a simple ‘plug and play’

8) 1 metre of Velcro – with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

The whole kit is ready to use – just plug and play!

Dimensions of the products:

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions

THE POWER PACK*

Takes 8 x AA batteries (not supplied) and is 12.7cm x 7.02cm x 1.9cm and has a 19cm thin power wire coming out of it that leads to the driver.

DRIVER

The driver is 8cm x 5cm x 3.2cm and has the controls on it – Off, Flashing or On

It has a 55cm wire coming out of it that leads to the…

SPLITTER

The 3-way Splitter is 40cm long in total, it is 20cm of wire which then splits into 3 separate strands which are all 20cm long

2 of the 3 channels lead to the front of the costume, one to the Right and the other to the Left

Front Right

A mini 3-way splitter plugs into a 6cm EL Hoop, the 40cm Curved EL Panel and one of the Double Hoops

Sticky back Velcro is supplied that is the exact width of the EL Tape – be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don’t need to use the Velcro and can fix it any way you choose

Front Left

Here a mini 2-way splitter is plugged into the Clu shape EL Panel and the other Double Hoop

It is best to plug the 50cm extender into the 3rd channel off the main 3-way splitter which then leads to the…

EL Identity Disc

This Large El Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across

SPLITTERS

This is how we recommend using the splitters:

A 3-way splitter coming straight from the driver – one channel leads to a mini-3way splitter for the Front Right of the costume

– another channel leads to a mini 2-way splitter for the Front Left

– the last channel plugs into a 50cm extender and powers the ID disc at the back of the costume

* Instead of 8XAA battery pack this whole unit can be powered by a small rechargeable Li-ion battery

The 3000mAh battery is as powerful as 8xAA batteries but weighs only 172g and is 7.3cm x 5.6cm x 2.2cm

It comes with an Intelligent Charger with UK plug

Its not complicated or fiddly – I’ve just given all those details if you want to plan your costume before you buy the set – feel free to message me if you have any questions

The whole kit is ready to use – just plug and play!

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET
