White EL Panel in Many Sizes A6, A5, A4, A3, A2 and A1

£15.00£300.00



  • Versatile Electroluminescent Panels in a selection of ‘A’ sizes from A1 down to A6.
  • The panels glow a bright white when on and are pink/peach colour when switched off.
  • A choice of drivers powered by a 12v power pack or mains electricity (UK plugs are standard but Euro or US are available on request).
  • A size panels double in size, so it is possible to use an A3 Driver to make 2 x A4 panels glow (connecting them with an EL Splitter), or the same A3 Driver could make 4 x A5 panels glow (connecting them with a 4-way splitter).

Clear

Description



(A larger selection of EL Panels are available at our sister website elpanelandtape.co.uk)

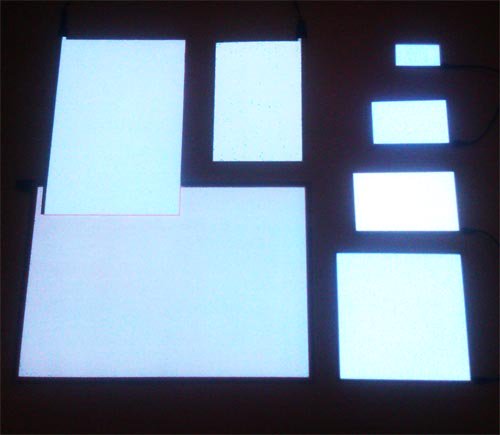

This listing is for Electroluminescent Panels in a selection of ‘A’ sizes

EL Panels are very versatile thin sheets that give off a very bright glow

All the Panels are less than half a millimetre thick and the sizes below:

Size = Height x Width (mm) or Height x Width (inch)

A1 = 841 x 594 mm or 33.1 x 23.4 inches

A2 = 594 x 420 mm or 23.4 x 16.5 inches

A3 = 420 x 297 mm or 16.5 x 11.7 inches

A4 = 297 x 210 mm or 11.7 x 8.3 inches

A5 = 210 x 148 mm or 8.3 x 5.8 inches

A6 = 148 x 105 mm or 5.8 x 4.1 inches

(other sizes, colours and shapes of EL Panel are available here on this website)

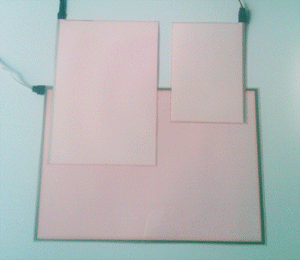

The colour of White EL Panels when they are switched off is a pink or peach colour.

el panels on and off

EL panels on and off

The Panel needs a Driver to power it – this can either run off a 12v power pack or mains electricity (UK plugs are standard but Euro or US are available on request)

A size panels double in size, so it is possible to use an A3 Driver to power two A4 panels (using an EL Splitter), or the same A3 Driver could power four A5 size panels using a 4-way splitter.

A larger selection of EL Panels and dedicated drivers is available at our sister website elpanelandtape.co.uk

We also have a whole selection of different size and colour EL Panels, EL Tapes, EL Shapes and EL Letters available.

el wire and el tape

Additional information

Weight N/A
Dimensions N/A
EL Panel Size

, , , , ,

EL Panel Driver

, , , , , , , , , , , ,
