Replacement EL Backlight 25mm x 120mm for Realistic Scanner


SKU: 25x120mm_Backlight_ Categories: , Tags: , , ,

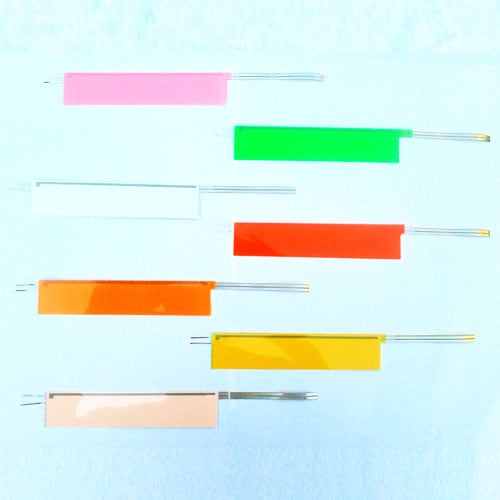

This EL Panel is 25mm wide (with a lit area of 23mm) and 120mm long

It has been designed to fit most Realistic scanner models but will also backlight any device with similar screen size


12cm is too long for most models, so just cut it down to size with sharp scissors

There are a choice of connectors on either end depending what is most convenient for the device

There is a jumper connection on the left and on the right is thin FPC tape that can also easily be soldered onto – just cut off the one you don’t need

jumper connector

On the left – Jumper Connector

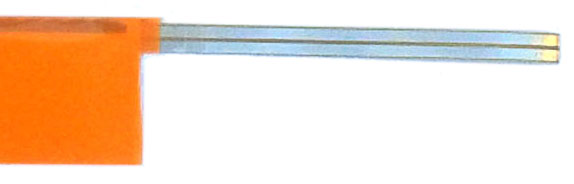

FPC connector

On the right – FPC Connector

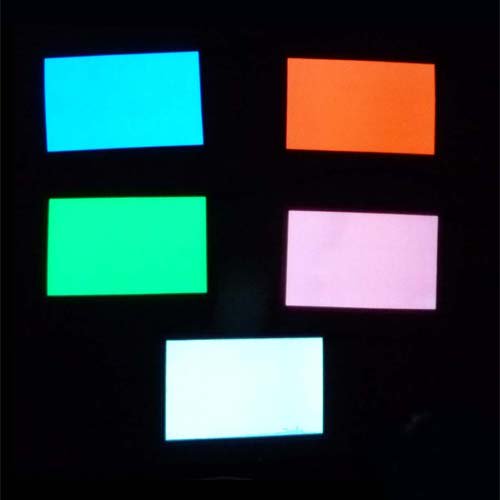

These Electroluminescent Tape backlight panels are available in:

Light Blue (Tron Blue)
, Purple, Deep Blue, Pink, Red, Orange, Yellow, Lime Green,  and White

We have plenty of other shaped EL Tapes and Panels if this one is not quite right in our store

EL Tape and Panels need an Inverter to make it glow – if you are replacing an EL Backlight then you simply wire the EL Panel into the inverter that is already in the machine

If you are creating an EL Backlight where there wasn’t one before you will need to also insert a small inverter/driver

Comprehensive instructions for replacing backlights are available on YouTube

el wire and el tape

The EL Panels and EL Tape is paper thin (about 1/3 of a millimetre!) so it is incredibly versatile and can be used for a variety of uses

We have a whole range of EL Wire, EL Tape and many types of driver/inverters are also available.
