Name: Sam Flynn Tron - TORSO Replica EL Panel Costume Front +Back + Driver
SKU: flynn _Torso_
Price: 79.99 GBP
Availability: InStock

Description

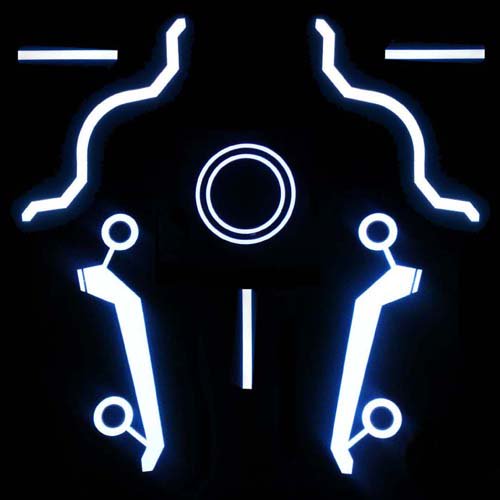

With this set you get:

1) Two pieces of replica shaped EL Tape for the front of a Sam Flynn Costume – a Left and a Right

2) A single 1.5cm x 15cm EL Tape for the glowing mid line

3) A 14cm EL Identity Disc for the back of the costume

4) Two pieces of 2cm x 40cm Curved EL Tape for the back of a Tron Costume – It is curved to go round the ID Disc and over the shoulder

5) Two Pieces of 1.5cm x 15cm EL Tape for the top of the arms of the Tron costume

6) A Powerful 8 x AA battery inverter

7) 2 x 3-way splitters, 1 x SML and a 2-way splitter and a 50cm long extender to make it a simple ‘plug and play’ but also with plenty of room for the wire to stretch around the costume

8) 1.5 metres of Velcro – with sticky hoop and sewable loop to make it easy to attach the set to a costume and have it removable

The Set is only available in Light Blue (Tron Blue)

The whole kit is ready to use – just plug and play!

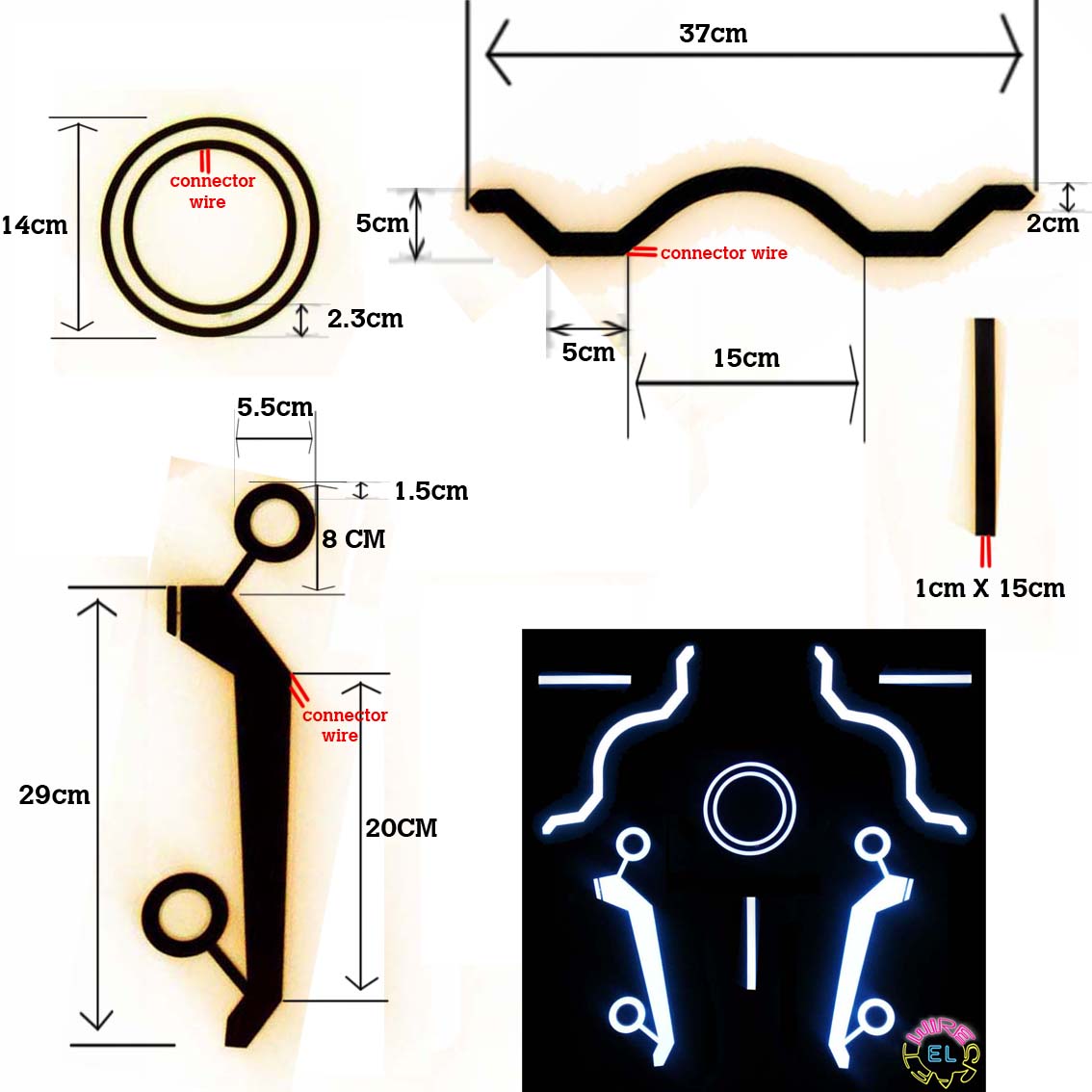

Dimensions of the products:

sizes of the EL Panels

If you are making a costume, it is a good idea to plan it out properly.

For this set, the driver/inverter is very powerful and comes with a separate power pack

So here are the dimensions of all the parts plus lengths of wire between them.

Feel free to message us if you have any questions

THE POWER PACK

Takes 8 x AA batteries (not supplied) and is 6.5cm x 6cm x 3cm

it has a 65cm thin power wire coming out of it that leads to the…

INVERTER

The inverter is 6cm x 4cm x 4cm

It has the controls on it – Off, Flashing or On

It has a 55cm wire coming out of it that leads to the…

SPLITTER

The Splitter is 40cm long in total,

it is 20cm of wire which then splits into 3 separate strands which are all 20cm long – 2 of them then lead to…

Left and Right Flynn Replica EL Tapes

The EL Tape is 30 cm from top to tail with the stick and hoop that comes in near the shoulder adding another 8cm

The tape is just 350 microns thick – that is 1/3rd of a millimetre!

Sticky back Velcro is supplied that is the exact width of the EL Tape – be careful putting it on as that glue is VERY sticky

You must sew the other part of the Velcro onto the costume making it very convenient to attach and remove

Of course, you don’t need to use the Velcro and fix it any way you choose

Mid-Line

Sam Flynn has a small line of light that runs down the middle of his chest. This is lit by the 1cm x 15cm EL Tape provided. This tape can be easily cut to shape if you prefer it smaller

EL Identity Disc

This Large El Hoop is 14cm in diameter, there are two thin EL Tapes running in concentric circles and the inner diameter is just over 9cm across

2cm x 40cm Curved Outline

The EL Tape is curved so is 37 cm from top to tail – it has been designed to go on the back round the ID disc and curve over the shoulder

EL Tape for the Arms

2pcs of 1.5cm x 15cm EL Tape, one for each arm

SPLITTERS

This is how we recommend using the splitters

A 2-way splitter coming straight from the Inverter – this divides the front and the back:

The First channel goes to a 3-way splitter

to power the front of the costume – The left and right Flynn Tape plus the mid-line

The Second channel

can be fitted with the extender wire and this will allow it to reach to the back of the costume

A 3-way splitter attaches to this:

1 channel does the 1cm x 15cm left arm

2nd channel does the left 2cm x 40cm curved outline

the 3rd channel has another 3 way splitter (SML) on it

1st channel attaches to the ID Disc

2nd Channel has the Right 2cm x 40cm curved outline

3rd channel does the 1cm x 15cm right arm

Depending on where you have the inverter, you may or may not need the extender wire

Its not complicated or fiddly – I’ve just given all those details if you want to plan your costume before you buy the set – feel free to message me if you have any questions

The whole kit is ready to use – just plug and play!

OR CONTACT US IF YOU WANT ADVICE PLANNING YOUR SET
